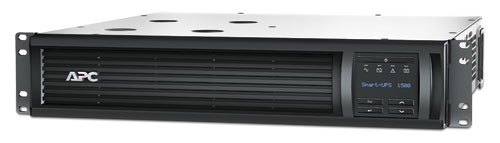

APC Smart-UPS 1500VA LCD RM 2U 120V (SMT1500RM2UC), SmartConnect Remote Monitoring, Pure Sine Wave Backup & Surge Protection - Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
- Output Power Capacity: 1000 Watts / 1440 VA
- Max Configurable Power: 1000 Watts / 1440 VA
- Nominal Output Voltage: 120V
- Output Voltage Distortion: Less than 5%
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz
- Topology: Line Interactive
- Waveform Type: Sine wave
- Output Connections: (6) NEMA 5-15R
- Nominal Input Voltage: 120V
- Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length 8 feet (2.44 meters)
- Input voltage range for main operations: 82 - 144V
- Input voltage adjustable range for mains operation: 75 - 154V
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time: 3 hour(s)
- Replacement Battery: RBC133
- RBC™ Quantity: 1
- Runtime: 7mins/1000watt, 26mins/500watt
- Interface Port(s): SmartSlot, USB
- Available SmartSlot™ Interface Quantity: 1
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
- Emergency Power Off (EPO): Optional
- Surge energy rating: 459 Joules
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Regulatory Approvals: CSA, Energy Star (USA), FCC Part 15 Class A, UL 1778
- Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- High online efficiency - Reduces utlility costs, generates less heat.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- SmartSlot - Customize UPS capabilities with management cards.
- Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
|
|
|
|
|
|
|
|
|
